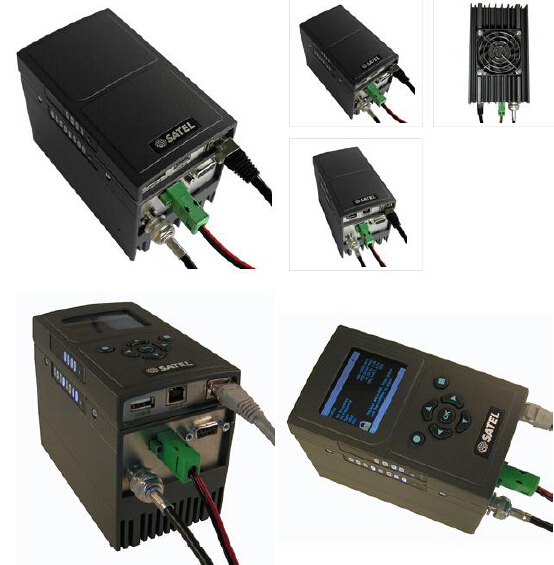

SATELLAR产品是新一代的数字式数传电台系统，它由几个不同的单元组成： • 中心单元 (CU) • 通信单元 (RU) • 扩充单元 (XU) SATELLAR产品使建立独立的，可靠的，实时的无线数据通信系统能够符合客户的特殊需要。比较典型的例子是一个中心单元连同一个通信单元一起在一个网络中作为一个主站或在一个需要以太网连接的场所中使用。如果是用在通信路由站，中心单元不是必需的。因为产品的模块化结构，在这些例子中，通信单元可以单独使用。 SATELLAR 单元既可以作单独的个体又可以作组合的产品包： • SATELLAR-2DS 包括一个通信单元和一个中心单元，确保了TCP/IP协议完整的连通性。 • SATELLAR-2DSd提供了与SATELLAR-2DS 同样的功能, 但是它被安装了一个彩色显示屏和一个按键区。 • SATELLAR-1DS 是一个通信单元，可以用在一个有足够标准RS连接的位置。
| RADIO PARAMETERS 通信单元(RU) | |
| Frequency range | 280 - 520 MHz *1 |
| Tuning range | 45 MHz |
| Channel spacing | 12.5 and 25 kHz, selectable |
| Carrier frequency configuration | Frequency programmability in 6.25 kHz steps |
| TRANSMITTERPARAMETERS | |
| Output power | 100 mW…1 W, SW adjustable with 10 mW steps |
| Maximum air interface data rates | 38400 bps @ 25 kHz channel, 19200 bps @ 12.5 kHzchannel |
| RECEIVERPARAMETERS | |||||
| Sensitivity (dBm) Channel spacing / air speed BER | BER | ||||
| 10E-3 | 10E-3 (50 % FEC) | 10E-6 (50 % FEC) | |||
| 25 kHz / 19200 bps | -114 | -116 | -110 | -115 | |
| 12.5 kHz / 9600 bps | -117 | -119 | -113 | -118 | |
COMMON PARAMETERS | |
| Power consumption | 10 W at 1 W transmission 7 W at 100 mW transmission 3 W reception |
| Interfaces - power | Detachable / lockable Screw terminal |
| Interfaces -DTE | RS-232 interface, D9 female |
| Interfaces - RF | TNC female |
| Mechanical dimensions | 130 x 24.3 x 76.5 mm |
| Weight | 300 g |
Central unit 中心单元 (CU)
| Mechanical dimensions | 130 x 21.7 x 76.5mm |
| Weight | 260 g |
| CPU | ARM 9 @ ~ 200 MHz |
| RAM | 64 MB RAM |
| ROM | 128 MB flash |
| Display | 2.4 ”, 320 x 240 pixel resolution, 65 k colours |
| Power consumption (no USB device connected) | 2.0 W With UI 1.4 W Without UI |
| USB interfaces | USB-host & USB-device USB2.0 full speed |
| Ethernet interface | 10/100 Mbit Ethernet RJ-45 with AUTOMDX |
Common for allunits
| Standard compliance *2) Radio requirements Emissions, immunity (RU) ESD (RU) Emissions, immunity, ESD (CU) RoHS | ETSI EN 300 113 MS, FCC Part 90 ETSI EN 301 489-1, 301 489-5, FCC Part 15 ETSI EN 61000-4-2 level 4 ETSI EN 61000-6-2, 61000-6-4 2002/95/EC |
| Temperature ranges | -25 - +55 oC complies with the radio standards, -30 - +75 oC functional, -40 - +85 oC storage |
| Humidity | < 95 % @ 25 oC, non-condensing |
| Mounting | DIN rail (side or back), Direct on flat surface |
| Vibration | at least 10 - 500 Hz/5 g without degradation in data transfer capability |
| Shock resistance | dropping height 1 m / all directions |
| IP rating | IP52 |
| DC input range | +9 Vdc...+30 Vdc |
